Forest change monitoring using remote-sensing time-series

Loïc Dutrieux, 2015-07-15

Scerin-3 Workshop, Braşov

Ben DeVries, Johannes Reiche, Jan Verbesselt, Lammert Kooistra, Martin Herold, Brice Mora

Laboratory of Geo-Information Science and Remote Sensing
Wageningen University, The Netherlands

Why do we want to keep an eye on the forests?

"Changes in forest cover affect the delivery of important ecosystem services, including biodiversity richness, climate regulation, carbon storage, and water supplies"(Foley et al. 2005; Hansen et al. 2013)

Forests are constantly evolving

Between 2000 and 2012, 2.3 million km² of forest were lost and 0.8 million km² were established (Hansen et al. 2013)

Challenges in remote sensing forest change tracking

  • Detecting change in time-series is not that straightforward
  • Scale and intensity of disturbances vary
  • Anthropogenic changes can be confused with natural variablility
  • Cloud cover reduces data availability... sometimes a lot!!!

How do we detect change in time-series?

BFAST framework for change detection

  • Verbesselt et al. 2010a,b, 2012
  • Models vegetation annual behaviours
  • 2 modules
    • Near real-time change detection (bfastmonitor)
    • Full time-series segmentation (bfast)

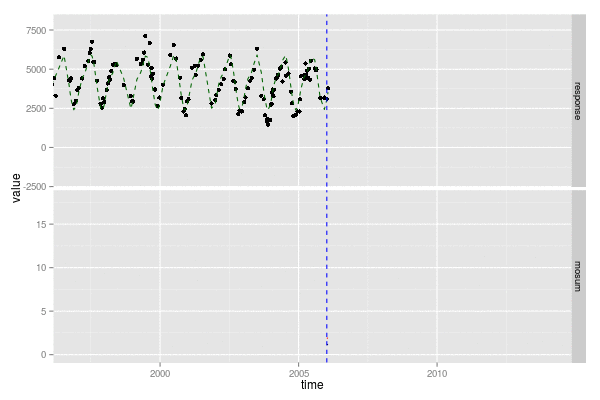

  • Near real-time change detection
  • Detect deviation from a stable regime

Verbesselt, J., Zeileis, A., & Herold, M. (2012). Near real-time disturbance detection using satellite image time series. Remote Sensing of Environment

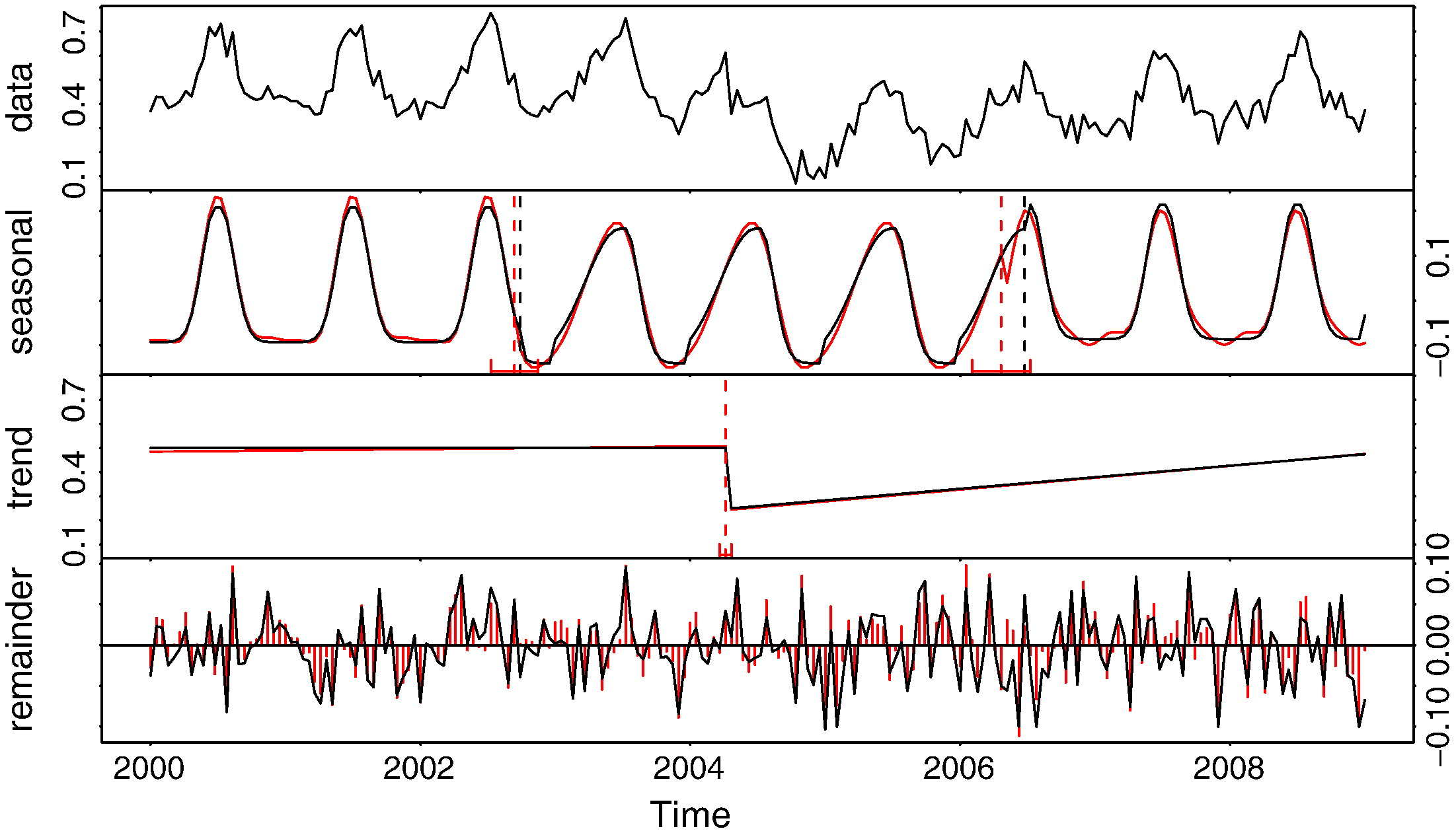

  • Iteratively decomposes time-series into trend, seasonality and remainder
  • Segments time-series into segments and breakpoints (abrupt and gradual change)

bfast example

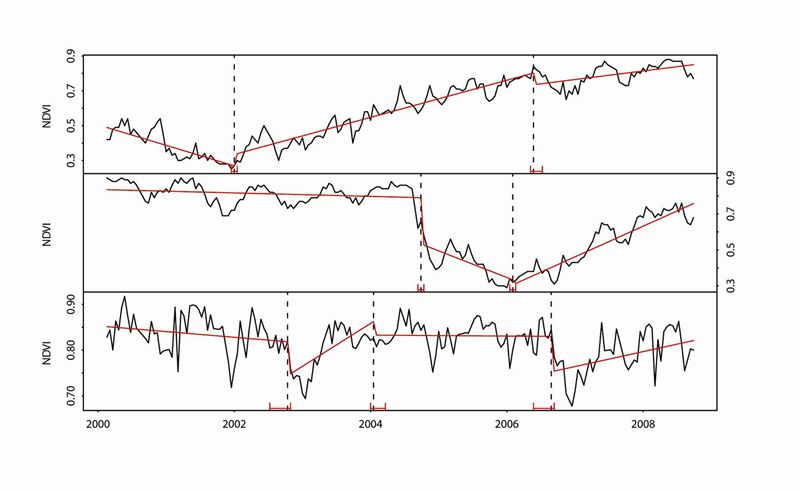

Shifts in land use regimes

Verbesselt, J., Hyndman, R., Newnham, G., & Culvenor, D. (2010). Detecting trend and seasonal changes in satellite image time series. Remote sensing of Environment

Available as an R package

bfast package

Examples of applications

Change detection and monitoring research research task

Monitoring small-scale forest disturbances

Monitoring small-scale forest disturbances

  • Use bfastmonitor with Landsat time-series
  • Combine significant change with change magnitude to detect small-scale disturbances

DeVries, B., Verbesselt, J., Kooistra, L., & Herold, M. (2015). Robust monitoring of small-scale forest disturbances in a tropical montane forest using Landsat time series. Remote Sensing of Environment

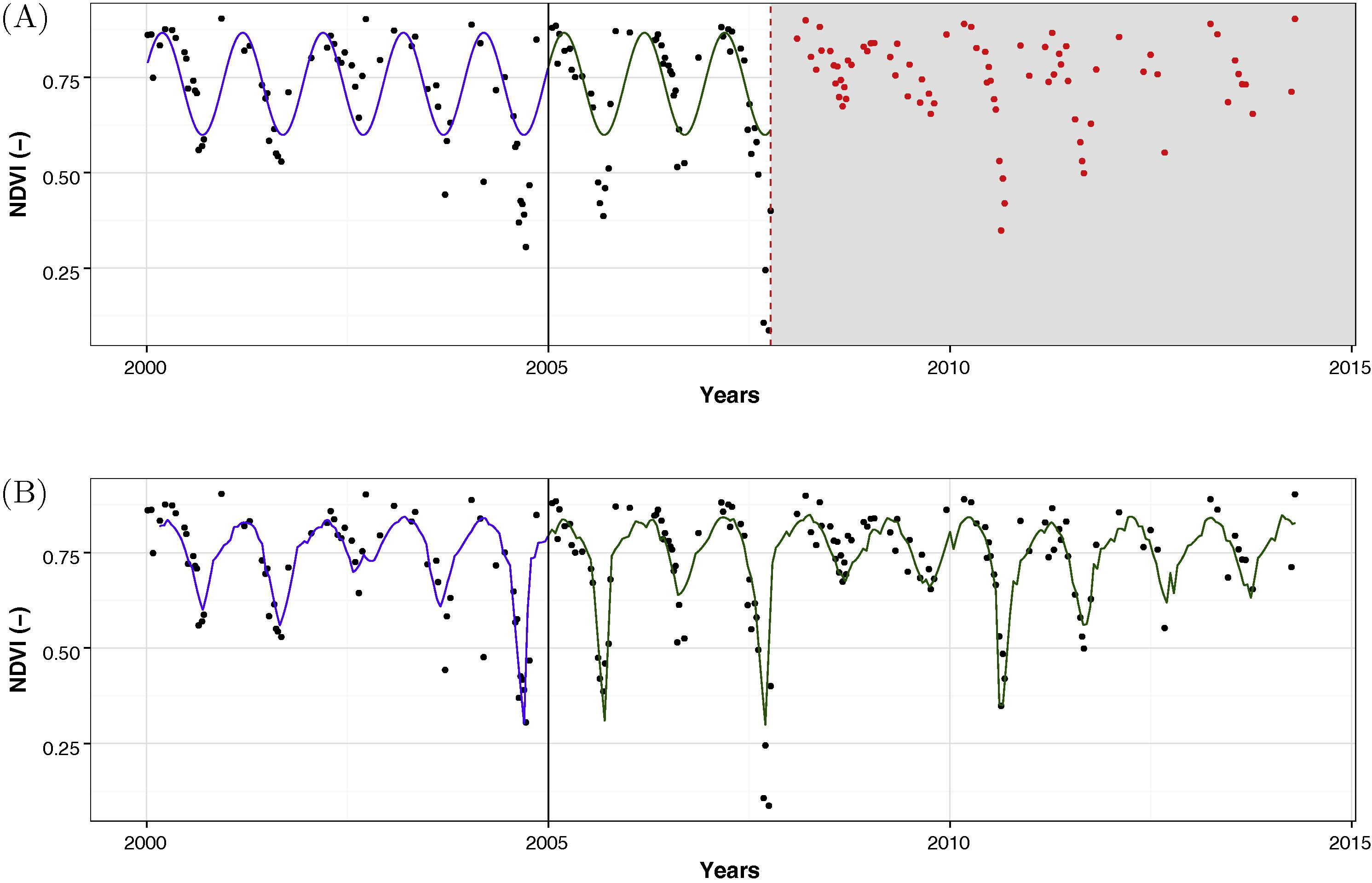

Monitoring forest cover loss using multiple data streams

Monitoring forest cover loss using multiple data streams

  • Uses MODIS NDVI as external regressor in the change detection process
  • Takes advantage of the scale difference between natural and anthropogenic disturbances

Dutrieux, L. P., Verbesselt, J., Kooistra, L., & Herold, M. (2015). Monitoring forest cover loss using multiple data streams, a case study of a tropical dry forest in Bolivia. ISPRS Journal of Photogrammetry and Remote Sensing.

SAR-optical fusion for deforestation detection in the tropics

SAR-optical fusion for deforestation detection in the tropics

  • Fused Landsat and PALSAR (L-band SAR) time series
  • Increase in spatial and temporal accuracy with high cloud cover

Reiche, J., Verbesselt, J., Hoekman, D., & Herold, M. (2015). Fusing Landsat and SAR time series to detect deforestation in the tropics. Remote Sensing of Environment


A change map in 3 lines of code


  • Forest dynamics can be difficult to capture using satellites
  • We've developed and tested different approaches to tackle forest change monitoring in various environments
  • ... And we keep working on it (forest regrowth, land use intensity, etc)
  • We've developed free (as in speech and in beer) tools for everyone to use
  • Use them and let us know what we can improve
